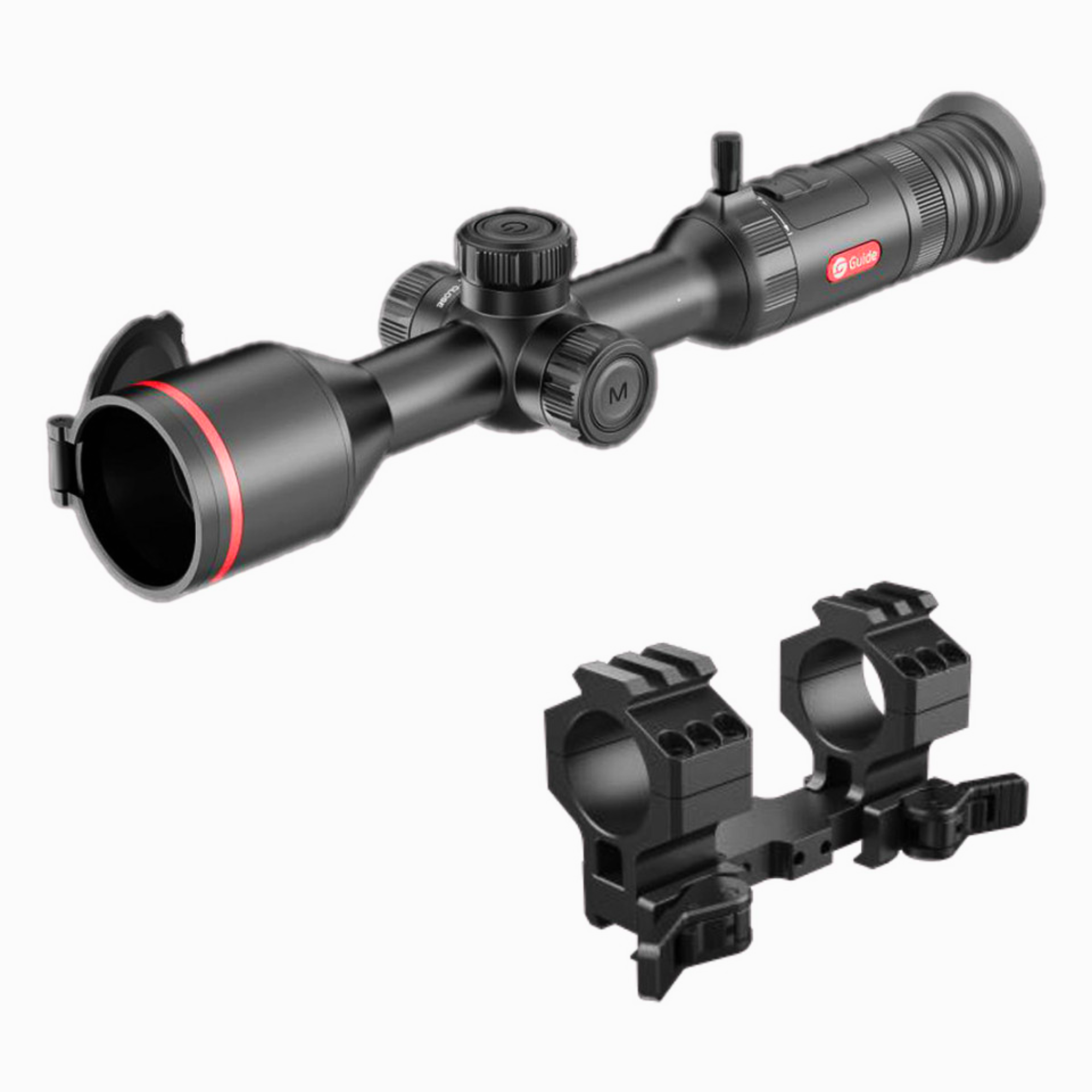

Guide TU435 3.0 Thermal Scope

HIGH SENSITIVITY THERMAL DETECTOR
The TU435 3.0 is equipped with a high-performance 400×300 @ 12μm thermal sensor and an ultra-sensitive <20mK NETD detector, delivering exceptional image clarity even in the most challenging conditions.

SEAMLESS CONTROL
An ergonomically positioned central focus wheel and zoom lever ensure intuitive, one-handed operation for quick and effortless adjustments in the field.

SHUTTERLESS DESIGN
The innovative 3.0 shutterless design ensures smooth, uninterrupted visuals.

Designed for tough environments, the TU435 3.0 includes a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and easy-to-use controls. Durable, powerful, and ready for any challenge.

INCLUDES QUICK RELEASE SCOPE MOUNT.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14 μm
• Resolution: 400×300, 12 μm
• NETD: 20mK
• Frame Rate: 50Hz
• LENS
• Focal length: 35mm, F1.0
• FOA (Field of Angle): 7.4°×4.4°
• FOV m@100m: 13x8
• Magnification: 4.4x~17.6x
• Detection Range: 1800m/1950yd
• Focus: Manual
• DISPLAY
• Display Type: 0.49’’ AMOLED, 1920x1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x
• HARDWARE
• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube Diamater: Standard 30mm
• Others: Microphone, Bluetooth
• SYSTEM
• Recording Function: Photo/Video (Audio recording included)
• Memory Capacity: 128GB
