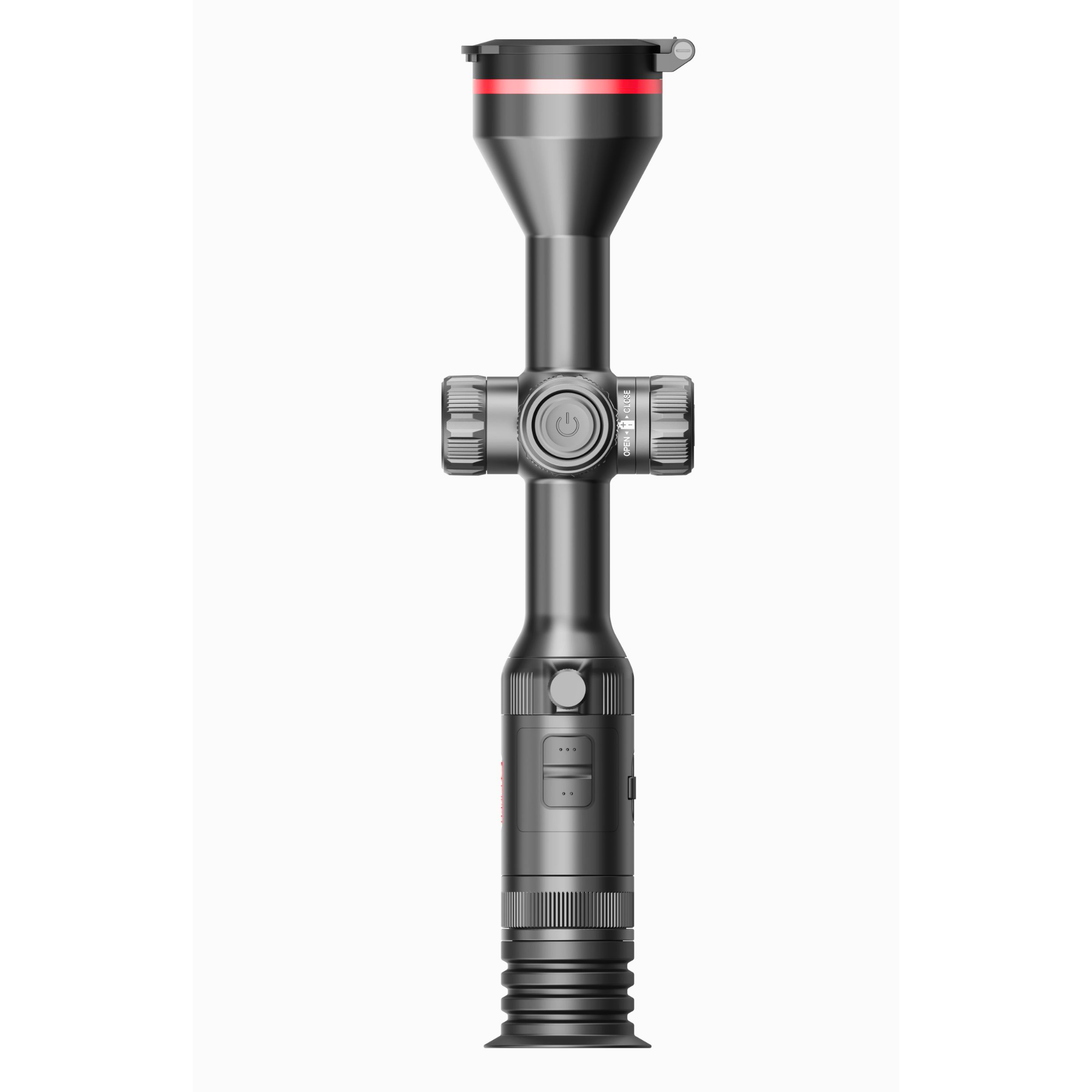

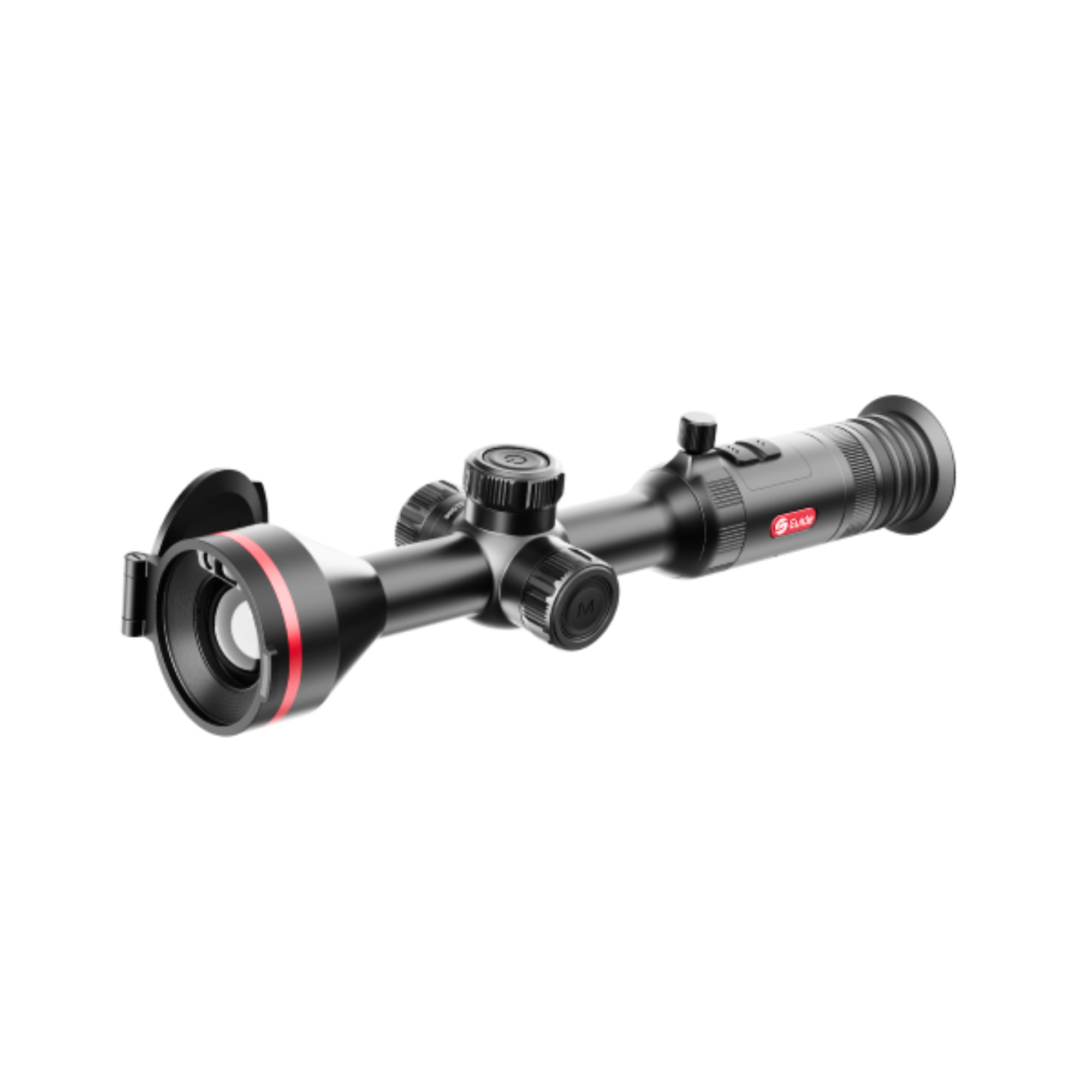

Guide TU435P LRF3.0 Thermal Scope

BUILT-IN LENS LASER RANGEFINDER
The TU435P 3.0  features a built-in laser rangefinder in the lens, providing fast and accurate distance readings up to 1000m, perfect for precise target identification and shot placement.

COMFORTABLE VIEWING
Features a QHD 1920 x 1080 AMOLED display for clear, smooth visuals.

HIGHLY SENSITIVE
Equipped with an ultra-sensitive <18mK NETD detector, the TU435P delivers exceptional image clarity, even in the most challenging conditions.

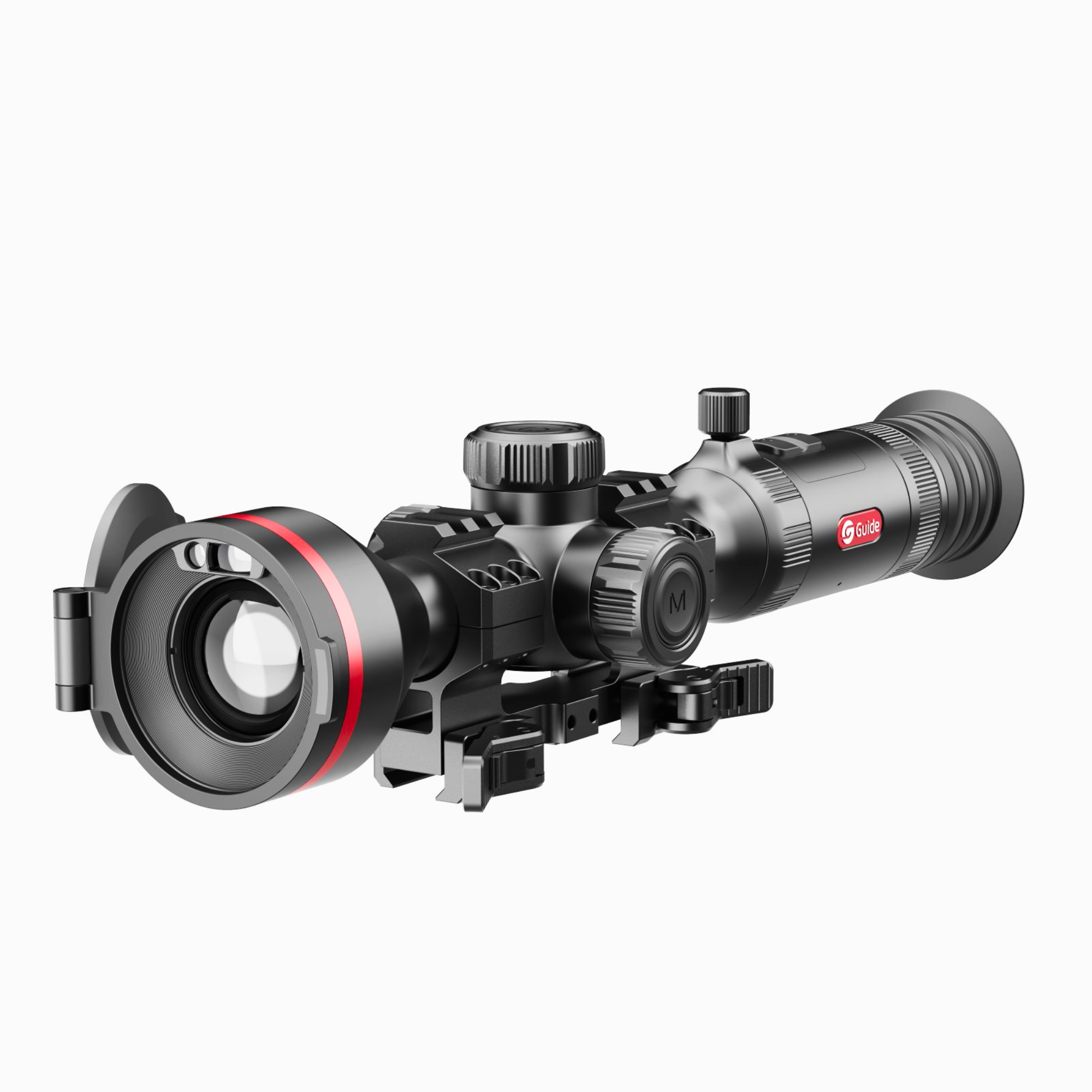

INCLUDES QUICK RELEASE SCOPE MOUNT.

Features:

• Highly Sensitive: 12μm thermal detector, NETD reaches 18mK.
• Exceptional Imaging: Hyper-light intelligent image enhancement
  algorithm delivers an ultra-detailed infrared view.
• Shutterless Design: Innovative 3.0 shutterless design ensures
  smooth, uninterrupted visuals.
• Seamless Control: Centrally positioned focus wheel & zoom lever,
  ergonomically designed for effortless operation.
• Laser Range: Pinpoint target locations with accuracy, up to 1500m.
• Rugged Design: IP68-rated, shock resistance up to 6000J.
• Powerful APP: Connect mobile APP for OTA firmware upgrade and
  ballistic calculation.

Specifications:

• SENSOR
• Type: Uncooled VOx Infrared Detector, 8 to 14 μm
• Resolution: 400×300, 12 μm
• NETD: 20mK
• Frame Rate: 50Hz
• LENS
• Focal length: 35mm, F1.0
• FOA (Field of Angle): 7.4°×4.4°
• FOV m@100m: 13x8
• Magnification: 4.4x~17.6x
• Detection Range: 1800m/1950yd
• Focus: Manual
• DISPLAY
• Display Type: 0.49’’ AMOLED, 1920x1080
• Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x
• HARDWARE
• Laser Rangefinder: 1500m/1630yd
• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube Diamater: Standard 30mm
• Others: Microphone, Bluetooth
• SYSTEM
• Recording Function: Photo/Video (Audio recording included)
• Memory Capacity: 128GB
• POWER
• Battery Type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
• Operating Time: 12 hours
