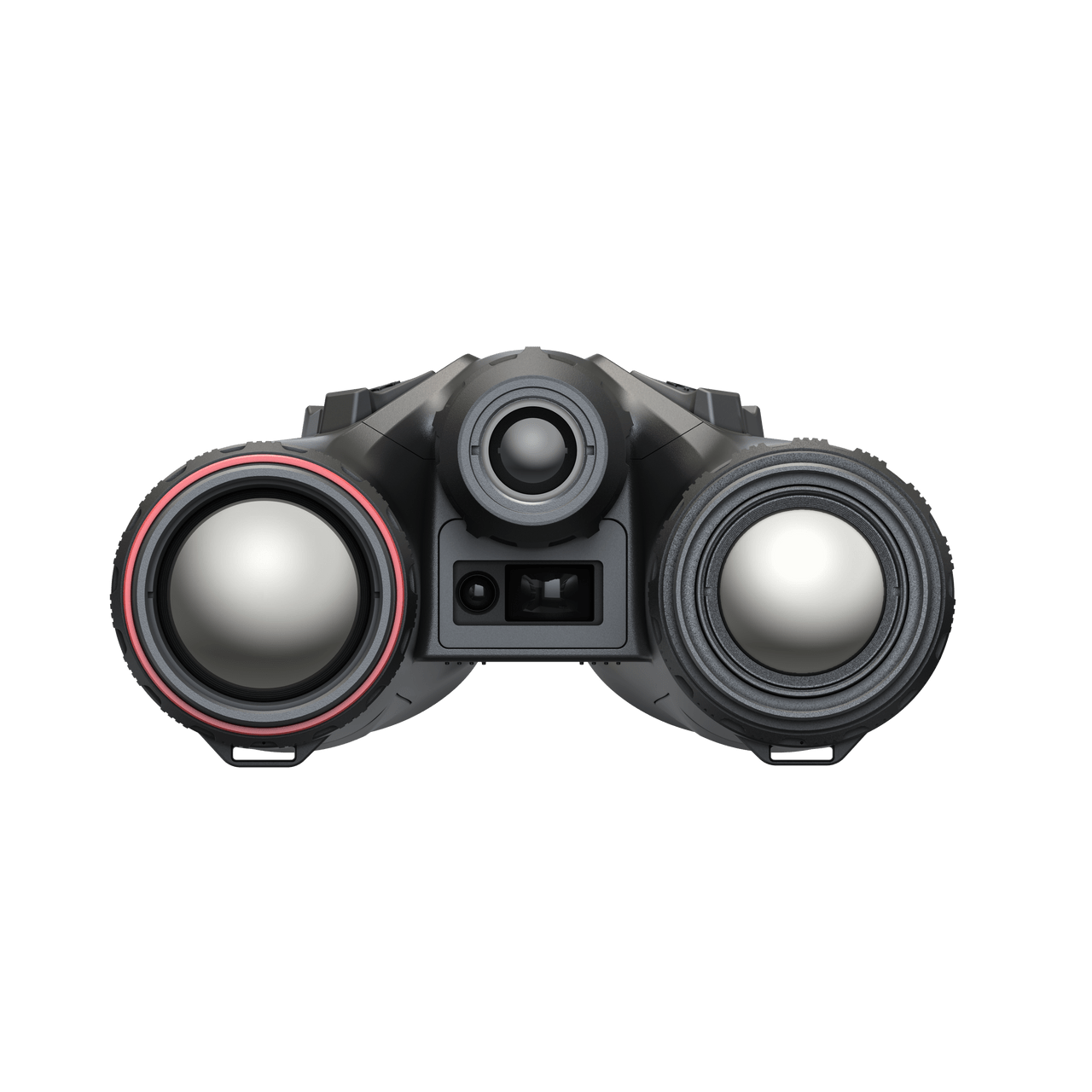

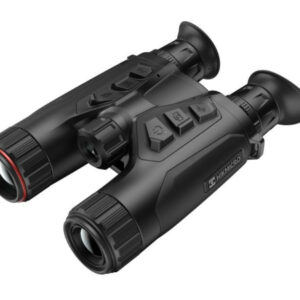

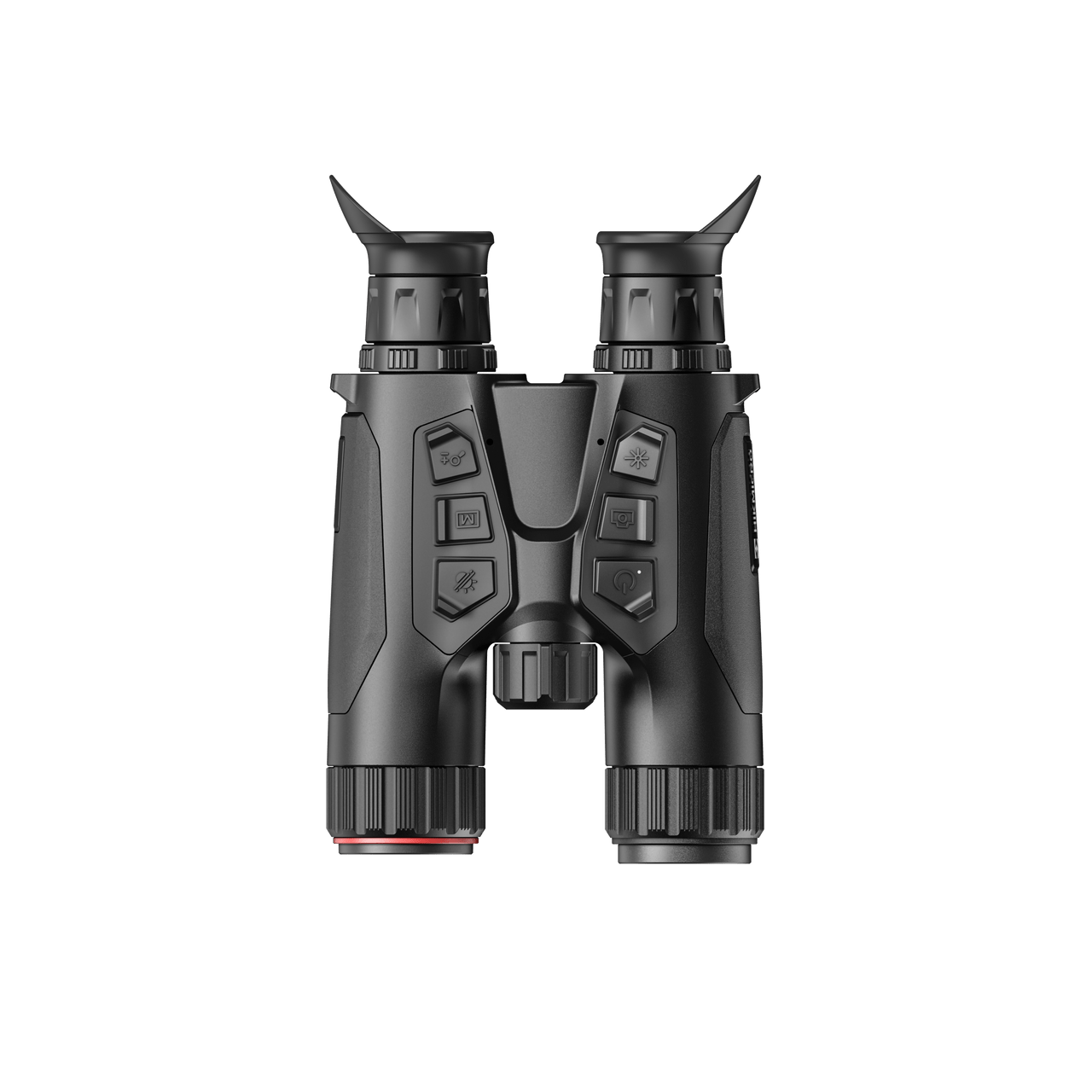

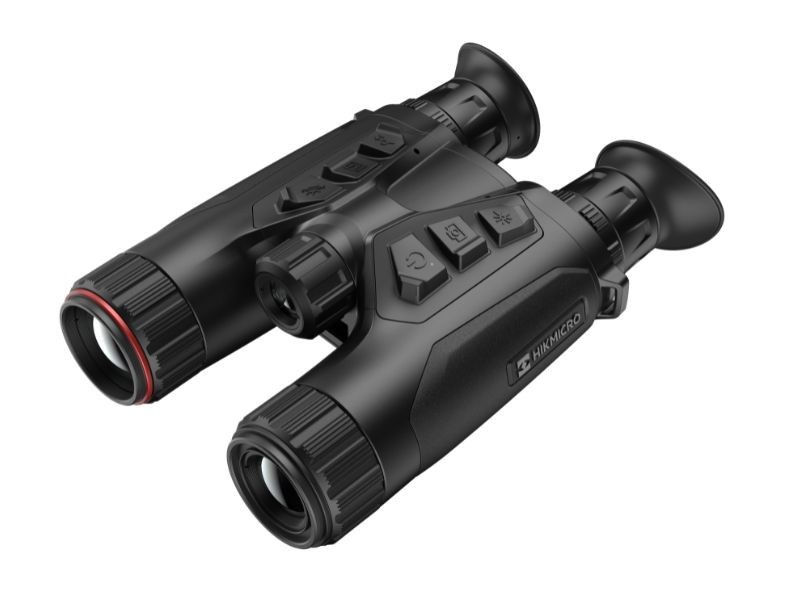

HIKMICRO Habrok 4K HE25L Multi-Spectrum Binocular
| SKU: | TIC701 |
Out of stock

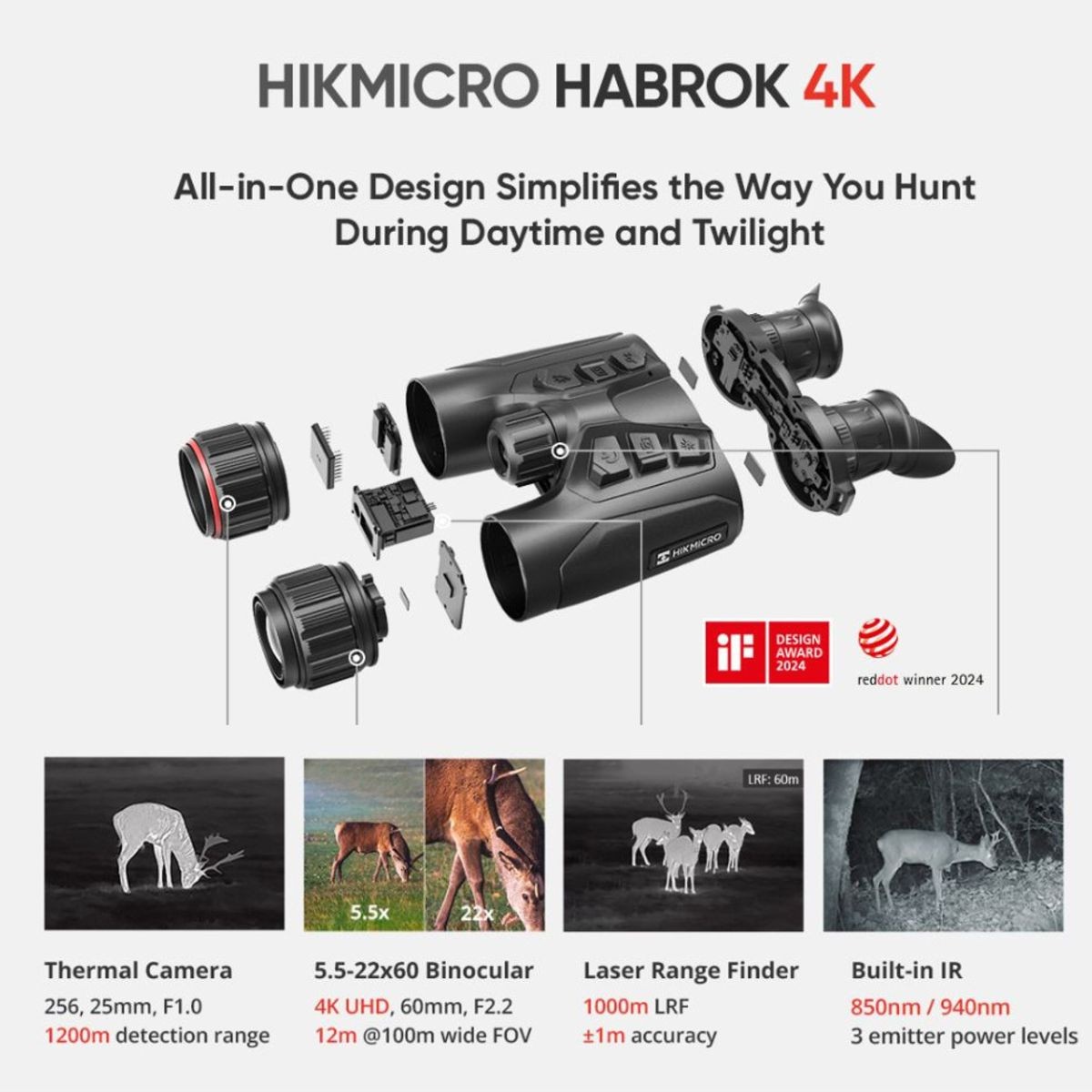

HIKMICRO HABROK 4K HE25L 5.5-22X60 is a powerful and innovative digital and thermal binocular designed
especially for daytime use. Combined with a 256 thermal detector, an advanced 4K digital detector for a 5.5x-22x
@60 mm lens, and a 1000 m laser rangefinder, this all-in-one binocular can be mainly applied in forest & field
hunting, birding, animal searching, adventuring, and rescuing in various weather conditions.
Key Features
● 256 × 192 resolution @12 μm thermal detector for crisp thermal detail
● High sensitivity thermal module NETD < 35 mK (@25°C, F# = 1.0)
● 25 mm, F1.0 lens with thermal detection range up to 1200 m

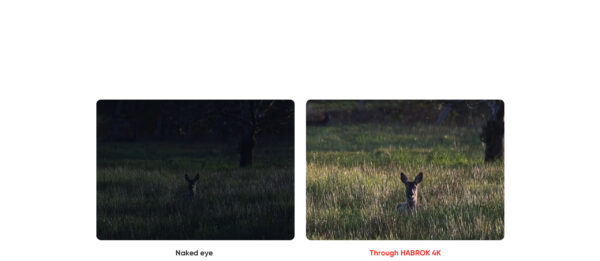

● 3840 × 2160 4K ultra high-resolution CMOS detector
● 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
● 1920 × 1080 resolution 0.49-inch OLED display
● Built-in 850 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance
● 795 g lightweight, with a compact and ergonomic design
Thermal Module
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 35 mK (@25°C), F# = 1.0 |
| Lens (Focal Length) | 25 mm, F1.0 |
| Focus Mode | Focus Ring |
| Detection Range | 1200 m |
| Min. Focusing Distance | 3 m |
| Magnification | 4.3x to 17.2x (4x) |
Optical Module
| Image Sensor | 1.88'' Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Focal Length | 60 mm, F2.2 |
| Min. Working Distance | 8 m |
| Focus Mode | Focus Ring |
| Magnification | 5.5x to 22.0x（4x) |
| Field of View (H × V), Degrees/m @100 m | 6.9°× 4.1°/12.0 m × 7.2 m |
| Smart IR | Yes |
| IR Illuminator Wavelength | 850 nm |
| Viewing Range at Night | 400 m |
Additional information
| Weight | 0.8 kg |
|---|---|
| Supplier Status | Hikmicro |
| Lens | 25 mm, F1.0 |
| Magnification | 5.5 X 17.2 (4X) |
| Detection range | 1200M |
| Laser rangefinder | 1000M |
| Wavelength, nm | 905nm |
| Video recording | Yes |
| Battery | Replaceable and Rechargeable Li-ion Battery |
| Warehouse | Sydney |
